Colorsource software engineering logo

COLORSOURCE engineering

Reliable information and color quality software solutions for Print Industries.

CMYK_100% screenshots

 CMYK_100% application icon

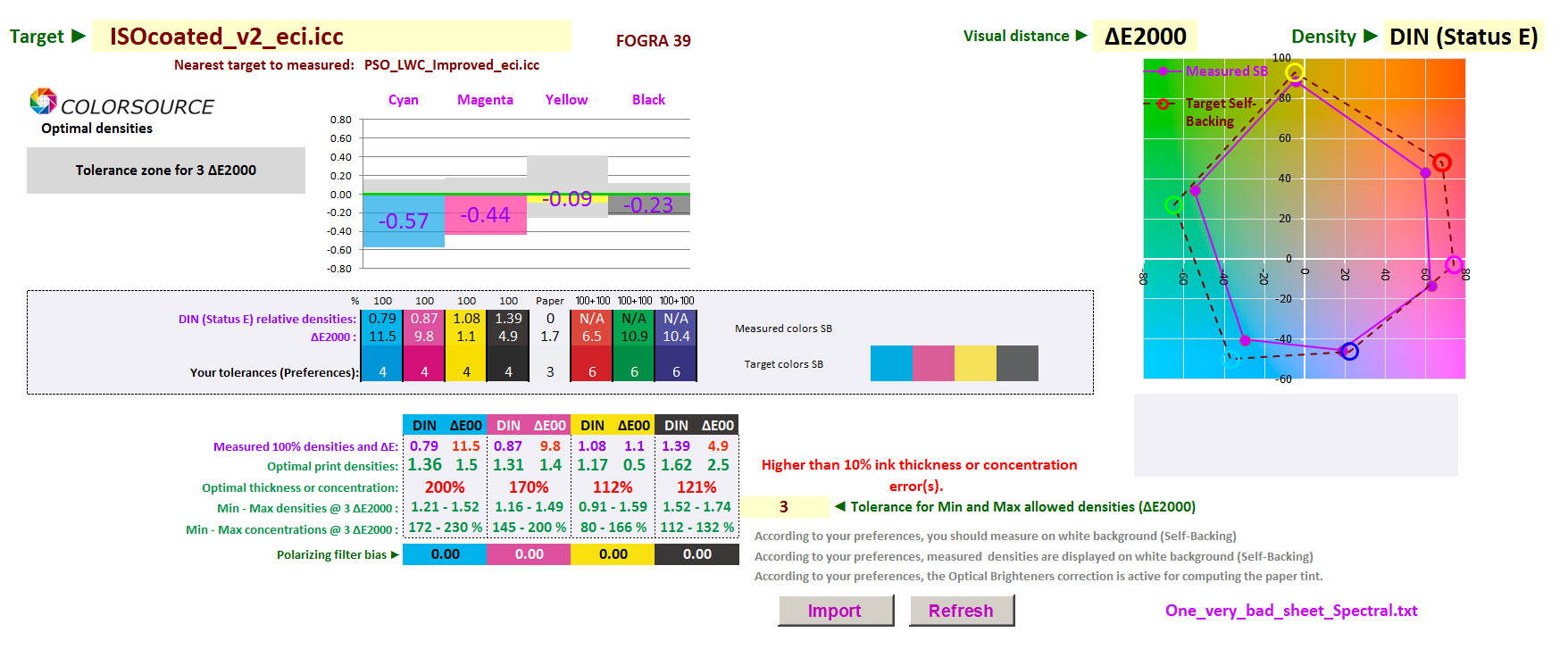

Measure of a very bad sheet with inkset 1 on coated paper 1:

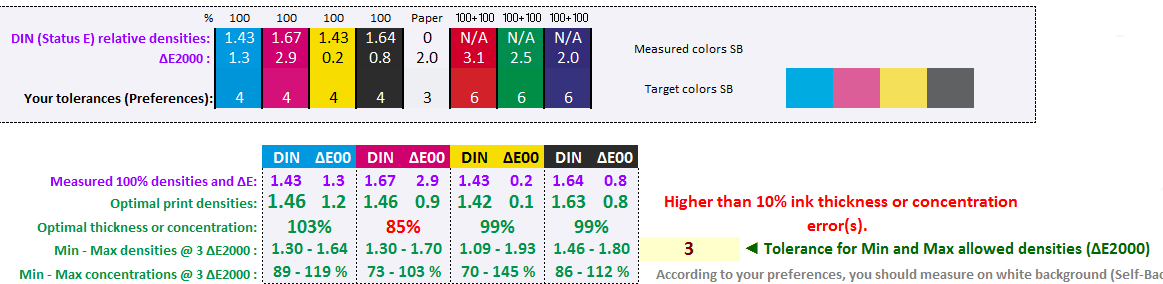

CMYK_100% application optimal CMYK densities screenshot

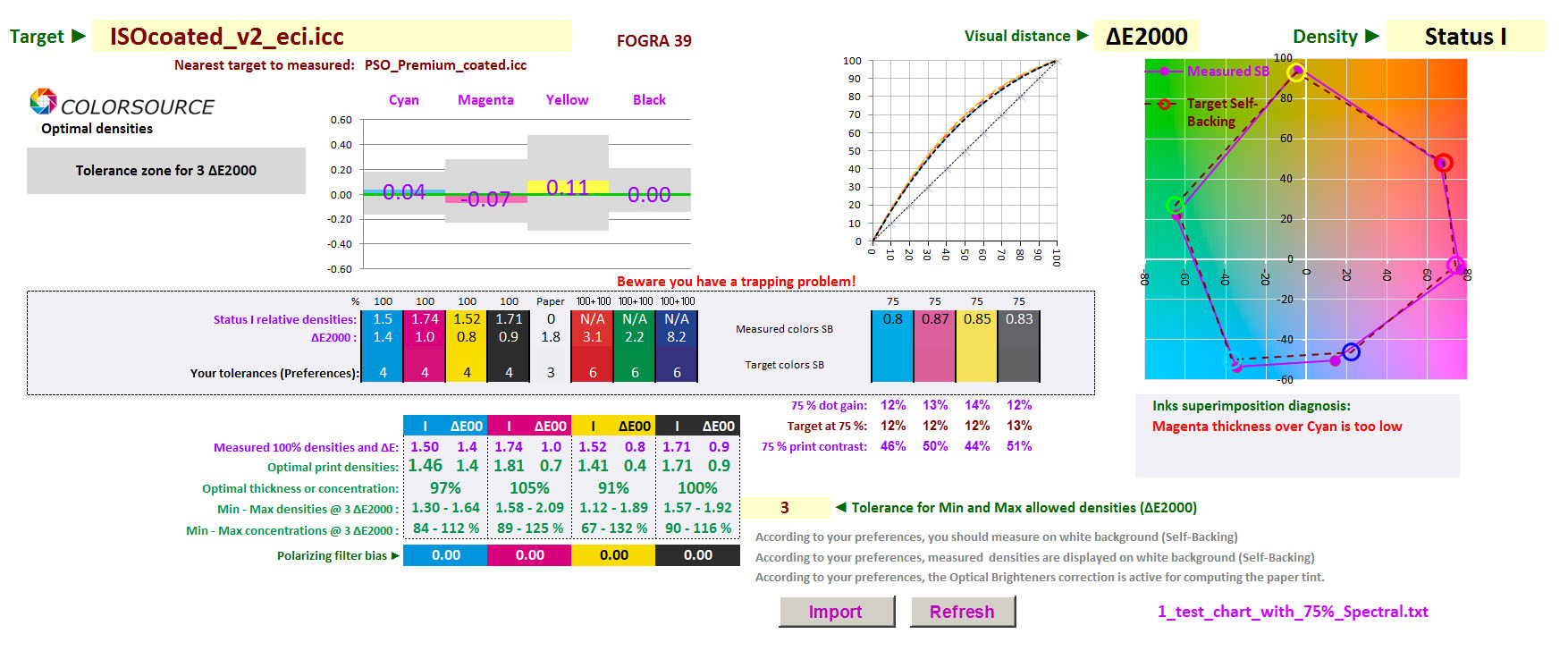

Measure of a rather good sheet with inkset 2 on coated paper 2: the optimal print densities for matching ISO12647-2 are quite different:

CMYK_100% application optimal CMYK densities screenshot

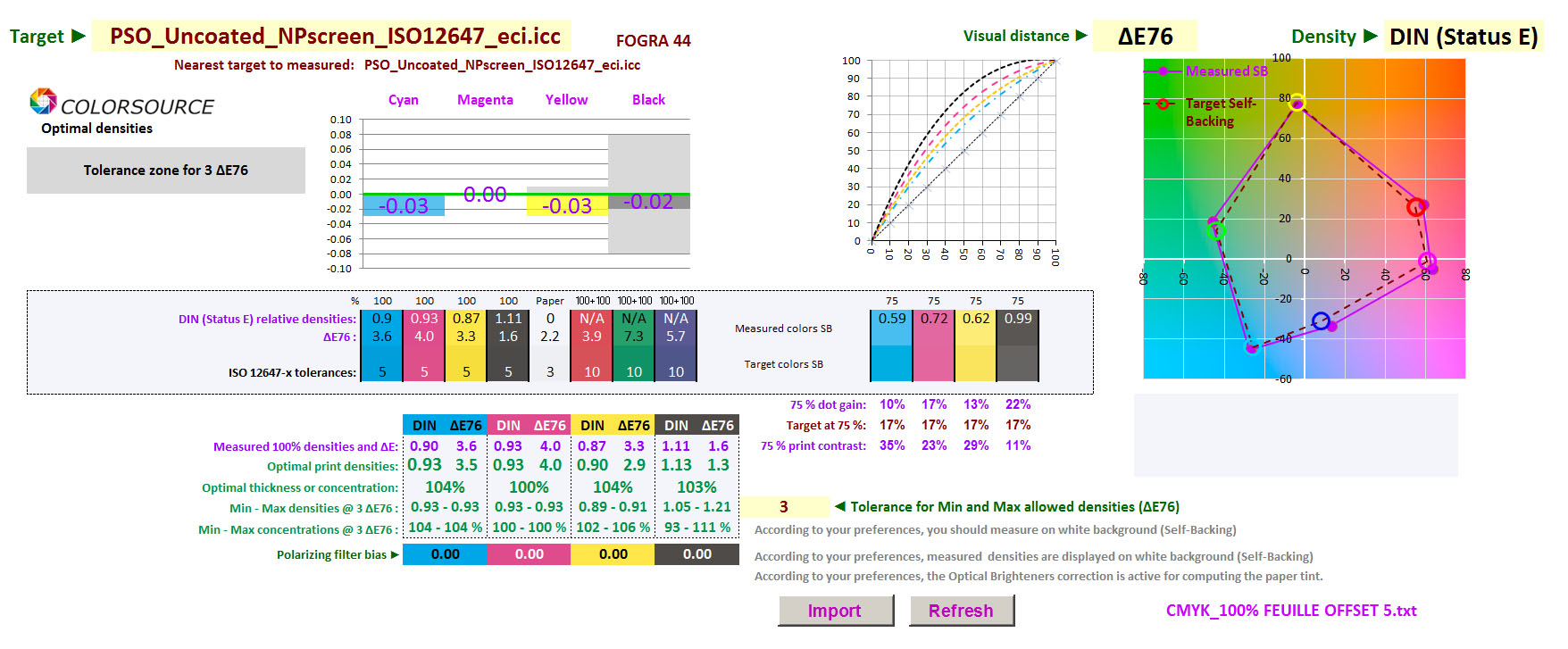

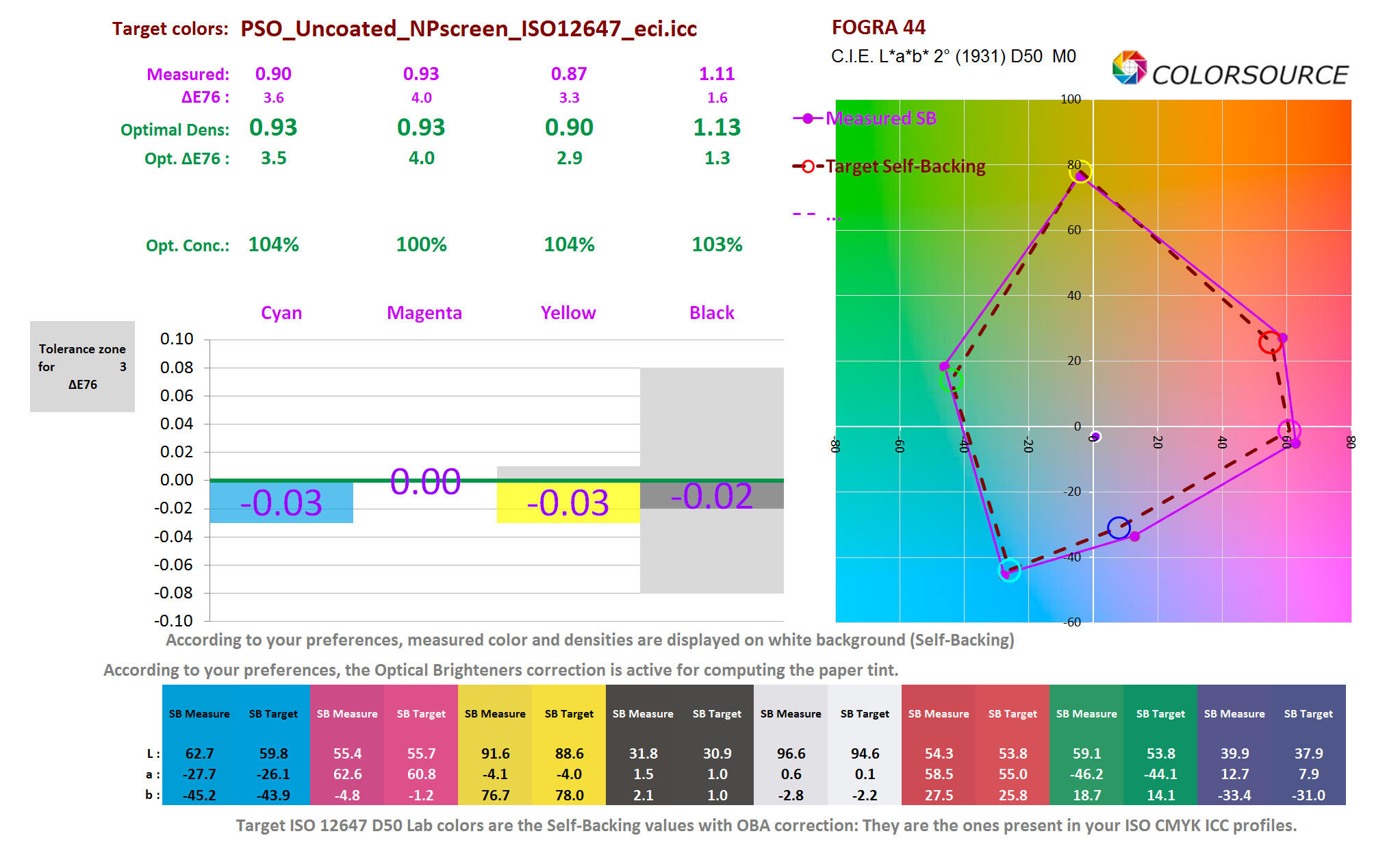

Measure of a good sheet (good solid densities) printed on uncoated paper: SB measurement with SB computed colors and densities:

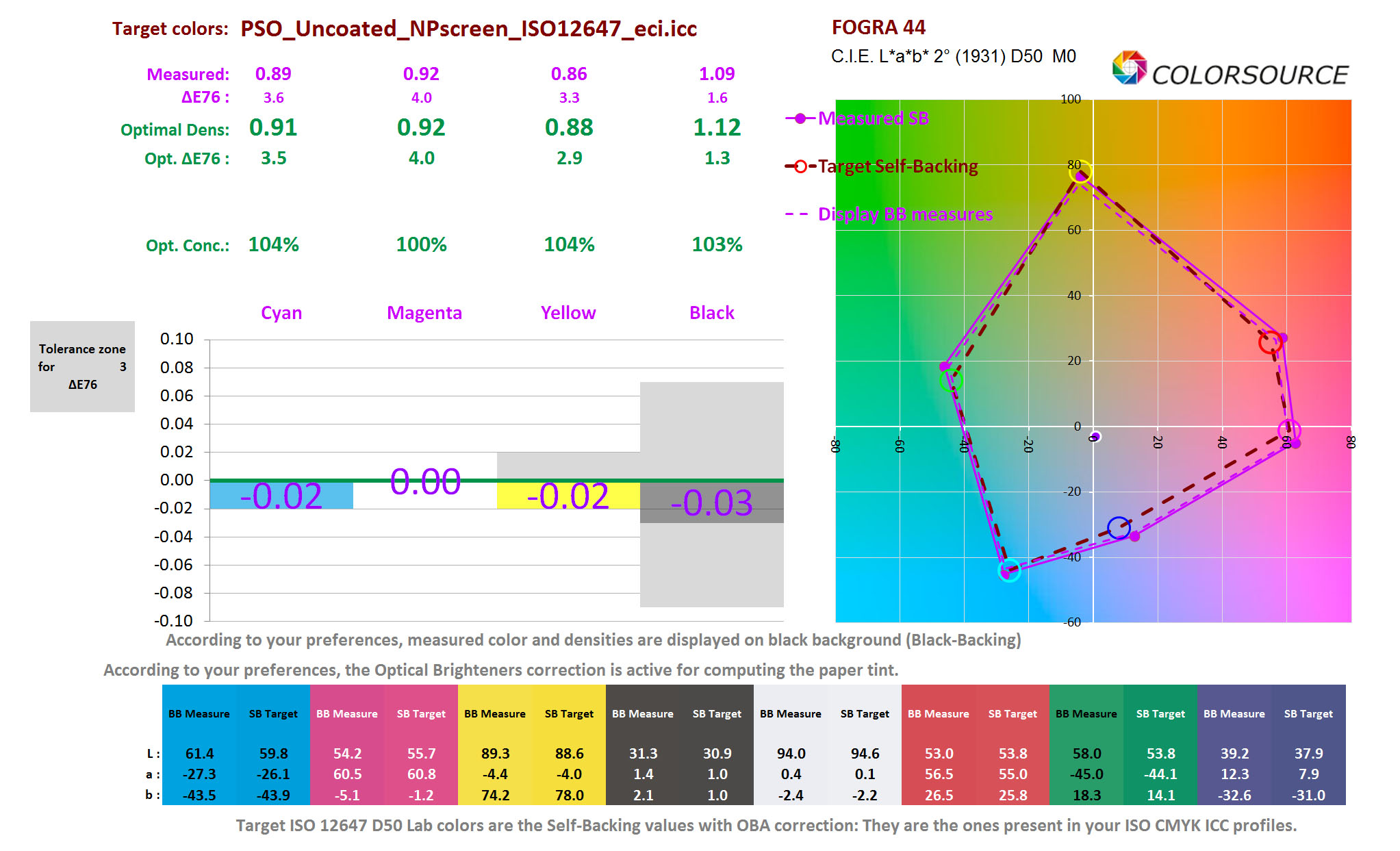

Same SB measurements as above, but with BB computed colors and densities: In both case the necessary optimal ink thicknesses keep the same for matching ISO12647 Fogra44, but BB masurement means getting different colors and using different optimal densities if the print would be measured on Black Background:

With Colorsource applications, 4 colors prints IS NOT only CMYK: You can easily create, document, and record your own CMYK or non-CMYK print standards, and use them whenever you need for perfect match:

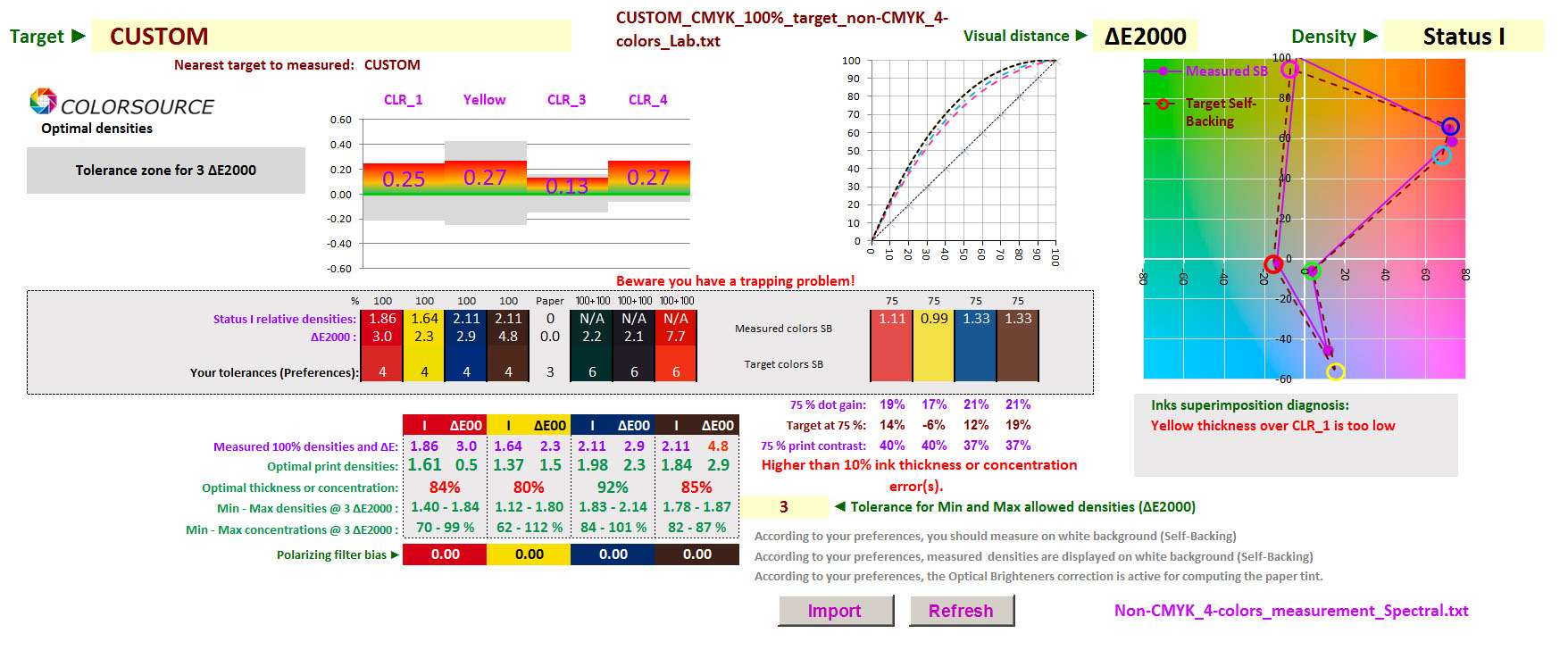

Computing optimal print densities for non CMYK inks
